Middle Sealing Four-side Edge Sealing Bag Making Machine
Inquiry Basket
OEM：
Available
Sample：
Available
Port：
Ningbo
Payment：
PayPal,VISA,MasterCard,Western Union,L/C,T/T
Place of Origin：
China
Shipping：
Sea freight · Land freight · Air freight
Supply Ability：
300 unit per Year
Product Details
color
red,blue,yellow

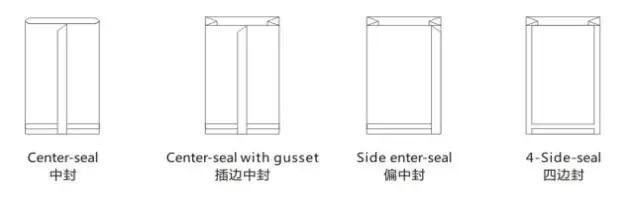

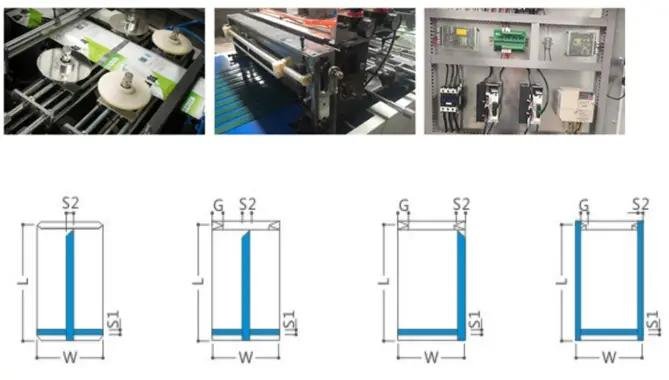

Middle Sealing/Four-side/Edge Sealing Bag Making Machine is suitable produce middle sealing pouch , edge sealing pouch and four side sealing pouch from material different kinds of laminated film.
- Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
- Constant auto-tension control for unwinding, EPC edge position controller, AC inverter constant speed auto material feeding.
- Imported double servo-motor material dragging control system.
- Main motor for up-down sealing and pressing equipped with inverter.
- PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
- Equipped with Pneumatic multi-function auto punching device, trim cutting and auto rewinding and static eliminator.
- Temperature adjustment range: 0~300°C.
- Counter: quantity, batch accumulation, preset available.
- Operation Method: by length fixation control and/or by photocell tracking control.
- Punching device: working rhythm can preset as continuous, interval or stop, punching time can be preset.
- Material Skip Feeding: one to six times available.
- Batch Conveying Function available, the quantity of batch can be preset.

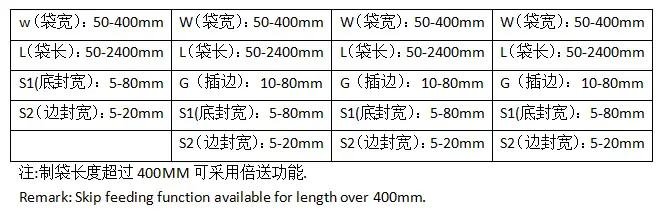

Main Technical Variables:
| KDZD-C400 | |
| Max.Diameter of roll material | 600mm |
| Max.Width of roll material | 850mm |
| Max.Capacity | 160 section/min（pieces/mm） |
| Max.Mechanical speed | 45meter/min |
| Max.Bag-making Width | 400mm |
| Bag-making Length | 50-2400mm |
| Total Power | 25Kw |
| Weight | 4500kg |
| Outline Dimension | 10500x1700x1900mm |
If you only buy one machine,we will pack machine with wooden pack,and loading container with Less Than Container Load（LCL）.
Our Main parts cooperator as following brand,but standard parts all made from China.
